Understanding how to determine virtual forces for truss structures is fundamental to analyzing their behavior under load. This process, based on the principle of virtual work, allows engineers to efficiently calculate displacements and internal forces within a truss system. The method provides a powerful alternative to more complex direct force analysis, particularly for statically indeterminate trusses. Accurate determination of virtual forces is crucial for ensuring structural integrity and safety. This article details the methodology, offering practical guidance and addressing common challenges encountered in the process.
The concept of virtual forces hinges on the principle of virtual work, which states that the work done by external forces on a structure is equal to the internal work done by the stresses within the structure. By applying a hypothetical (virtual) unit load to the structure at the point and in the direction of interest, one can determine the corresponding virtual forces in each member. These virtual forces then act as multipliers in calculating the actual displacement or deflection at that point. This indirect approach significantly simplifies analysis, especially for complex structures.
The process involves several key steps, beginning with identifying the desired displacement point and direction. A unit virtual force is then applied at that point and direction. Using static equilibrium equations, the virtual forces in each member of the truss are subsequently calculated. These virtual forces, when multiplied by the actual forces in the members (obtained from a separate analysis), provide the contribution of each member to the desired displacement. Summation of these contributions yields the total displacement. Understanding this relationship is critical for accurate analysis.
Finally, the superposition principle underpins the validity of this method. By applying multiple virtual unit loads strategically and summing the resultant displacements, the response of the truss to a variety of loading conditions can be comprehensively assessed. This allows for a comprehensive understanding of structural behavior, predicting potential points of high stress or deflection under different scenarios. Careful attention to the sign convention for forces and displacements is crucial to obtaining correct results.
How to Determine Virtual Forces for a Truss?
Analyzing a truss structure for displacement using the method of virtual work involves introducing a hypothetical unit load to determine the internal virtual forces. This process, while seemingly indirect, offers significant advantages over direct methods, especially for complex or statically indeterminate trusses. By carefully applying the principle of virtual work and adhering to specific steps, engineers can accurately predict displacements and, consequently, assess structural integrity. The following steps illustrate a clear and methodical approach to this essential structural analysis technique.
-
Step 1: Identify the desired displacement.
Determine the point and direction on the truss where the displacement is to be calculated. This is the location where the virtual unit load will be applied.
-
Step 2: Apply a virtual unit load.
Apply a unit load (typically 1 kN or 1 lb) at the point and in the direction identified in Step 1. This is the virtual load. This load does not represent a real load on the structure; it’s a tool for analysis.
-
Step 3: Analyze for virtual forces.
Using the methods of joints or sections (static equilibrium equations), determine the internal forces in each member of the truss caused by the virtual unit load. These are the virtual forces (often denoted with a ‘v’ subscript).
-
Step 4: Determine actual member forces.
Separately analyze the truss under the actual applied loads to determine the force in each member. These are the real forces (often denoted without a subscript).
-
Step 5: Calculate the displacement.
For each member, multiply the virtual force (Fv) by the actual force (F) and the member length (L), and divide by the member’s axial stiffness (AE, where A is the cross-sectional area and E is the modulus of elasticity). Sum these contributions for all members to obtain the total displacement at the point of interest. The formula is: = [(Fv F L) / (AE)]
Tips for Determining Virtual Forces for a Truss
While the process of determining virtual forces is straightforward, several practical tips can enhance accuracy and efficiency. Careful planning and methodical execution are crucial to avoid errors and obtain reliable results. Paying close attention to detail during each step of the analysis is paramount for obtaining accurate and meaningful outcomes. Careful consideration of the sign convention throughout the calculation is also extremely important.
Employing appropriate software or tools can greatly simplify the computational aspect of the analysis, particularly for larger or more complex truss structures. Understanding the underlying principles and properly interpreting the results is essential for practical application of this method.
-
Tip 1: Consistent Sign Convention:
Establish a consistent sign convention for forces (tension positive, compression negative) and displacements (positive in the direction of the virtual load) from the start and maintain it throughout the analysis.
-
Tip 2: Methodical Approach:
Follow the steps in a systematic manner. Clearly label all forces and diagrams to avoid confusion.
-
Tip 3: Check Equilibrium:
Verify the equilibrium of forces at each joint after calculating virtual forces. This helps identify and correct potential errors.
-
Tip 4: Utilize Software:
For larger trusses, use structural analysis software to assist with calculations and visualize results.
-
Tip 5: Verify Results:
If possible, compare your results with those obtained through other methods (e.g., direct stiffness method) for validation.
-
Tip 6: Consider Member Properties:
Accurate values for member cross-sectional areas and material properties are critical for accurate displacement calculations.
-
Tip 7: Understand Limitations:
The method assumes linear elastic behavior. For non-linear situations, more advanced techniques are required.
The application of virtual work to truss analysis offers a powerful and efficient means of determining displacements under various loading conditions. By understanding the principle of virtual work and meticulously following the analysis steps, engineers can accurately predict structural response. The method’s elegance lies in its ability to indirectly calculate displacements without the need for solving complex simultaneous equations, simplifying analysis significantly for statically indeterminate structures.
The accuracy of the results heavily relies on the accuracy of the initial assumptions and the precision maintained during the calculations. Any errors in the determination of member forces or the application of the virtual unit load will directly affect the final displacement value obtained. Thorough verification and validation steps are therefore crucial.
In conclusion, the method of virtual work presents a valuable tool for structural engineers. Its efficiency and relative simplicity make it an attractive alternative to other methods, particularly when dealing with complex truss systems. However, a clear understanding of the underlying principles and careful execution are necessary to guarantee accurate and reliable results.
Frequently Asked Questions about Determining Virtual Forces for a Truss
The method of virtual work, while powerful, often presents questions for those new to its application. Understanding the nuances and addressing potential challenges is crucial for successful and accurate analysis. The following frequently asked questions highlight common concerns and provide clarification on key aspects of this important structural analysis technique.
Q1: Can this method be applied to all types of trusses?
Yes, the method of virtual work can be applied to all types of trusses, including statically determinate and indeterminate ones. Its strength lies in its ability to handle indeterminate structures more efficiently than direct force methods.
Q2: What happens if there’s an error in determining the actual member forces?
An error in calculating the actual member forces will directly propagate into the displacement calculation. The final displacement result will be inaccurate, reflecting the error in the initial force determination. Careful verification is crucial.
Q3: How do I handle trusses with inclined members?
Inclined members are handled by resolving the virtual and actual forces into their component parts along the member’s axis. The length of the member used in the calculation is its actual length, not just the horizontal or vertical projection.
Q4: What are the limitations of this method?
The method is primarily applicable to linearly elastic structures. Non-linear behavior (e.g., material yielding, large displacements) requires more advanced analysis techniques. The method also assumes small displacements; the structure’s geometry is not altered significantly by the loading.
Q5: How can I improve the accuracy of my results?
Accuracy is improved by careful attention to detail in all steps: consistent sign conventions, accurate geometry and material properties, methodical calculations, and validation of results through checks of equilibrium and comparison with other analysis methods where possible.
Mastering the technique of determining virtual forces for truss structures is a key skill for any structural engineer. The method’s efficiency and applicability to various truss configurations make it an indispensable tool for assessing structural performance. The key lies in a thorough understanding of the fundamental principles and a meticulous approach to the analytical process.
The ability to accurately predict displacement under load is critical for ensuring the safety and integrity of truss structures. The virtual work method, combined with a solid understanding of statics and structural mechanics, enables engineers to effectively design and analyze these crucial components of numerous engineering projects.
Ultimately, proficiency in employing the virtual work method for truss analysis allows for a deeper and more insightful understanding of structural behavior. This leads to more efficient designs, improved safety margins, and a reduced reliance on overly conservative design practices.
In summary, understanding how to determine virtual forces for truss structures is a vital skill for structural engineers, offering an efficient and powerful tool for analyzing structural behavior and ensuring the integrity of these crucial load-bearing elements.

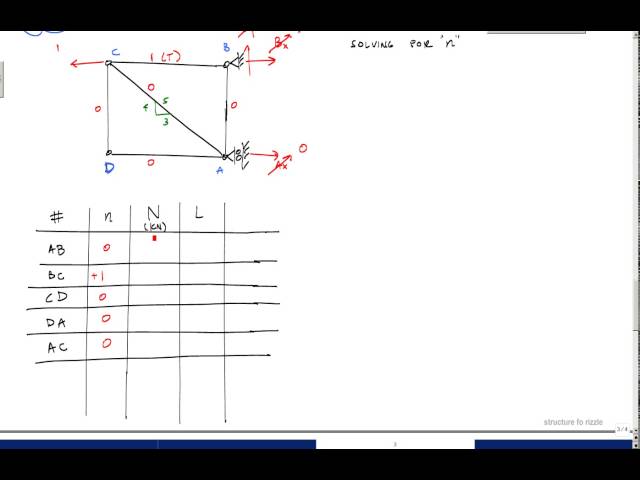

Youtube Video Reference:
